⚙️ Product Details
Key Specifications at a Glance
Item Specifications
Stage Size 20m × 40m
Main Truss Material 6082-T6 Aluminum Alloy
Common Cross-section Sizes 290×290mm, 350×350mm, 400×500mm, 520×760mm, 600×760mm, etc.
Main Tube Thickness 3.0mm
Average Load Capacity Over 600kg, depending on configuration
Maximum Span Capability Up to 30m or even 40m
Surface Finish Bright silver and various paint colors available
✨ Key Features and Advantages
Outstanding Mechanical Performance: The main structure is made of 6082-T6 high-strength aluminum alloy, combined with 3mm thick main tubes and solid triangular plate welding, giving the truss extremely high structural strength. For example, a 520×760mm truss can support an average total load of 900kg, and the 600×760mm truss can reach 950kg, sufficient for safely hanging large line array speakers, professional stage lighting, and large LED screens.
Modularity and Flexibility: The system is composed of truss rods of different lengths and specifications along with various accessories. It features pin or bolt connections and can be flexibly combined on-site. It can be built into square frames, triangular frames, and even customized curved roofs or other special shapes to meet diverse stage design needs.
Comprehensive Safety Assurance: The product design follows relevant technical codes and safety standards, ensuring safety from design and construction to use. Some products can also provide CE, TUV, and other third-party authoritative certifications.
System Components
A complete stage truss system typically includes the following components:
Truss Units: Aluminum alloy truss modules of various lengths and cross-section sizes.
Bases & Top Supports: Provide ground stability and height extension.
Diagonal Braces: Ensure the stability of the overall structure.
Square Sleeves & Cross Beams: Used for connection and fine-tuning height.
Lifting System: Includes manual or electric hoists, slings, etc., for lifting beams and equipment.
Application Scenarios
This truss system is ideal for:

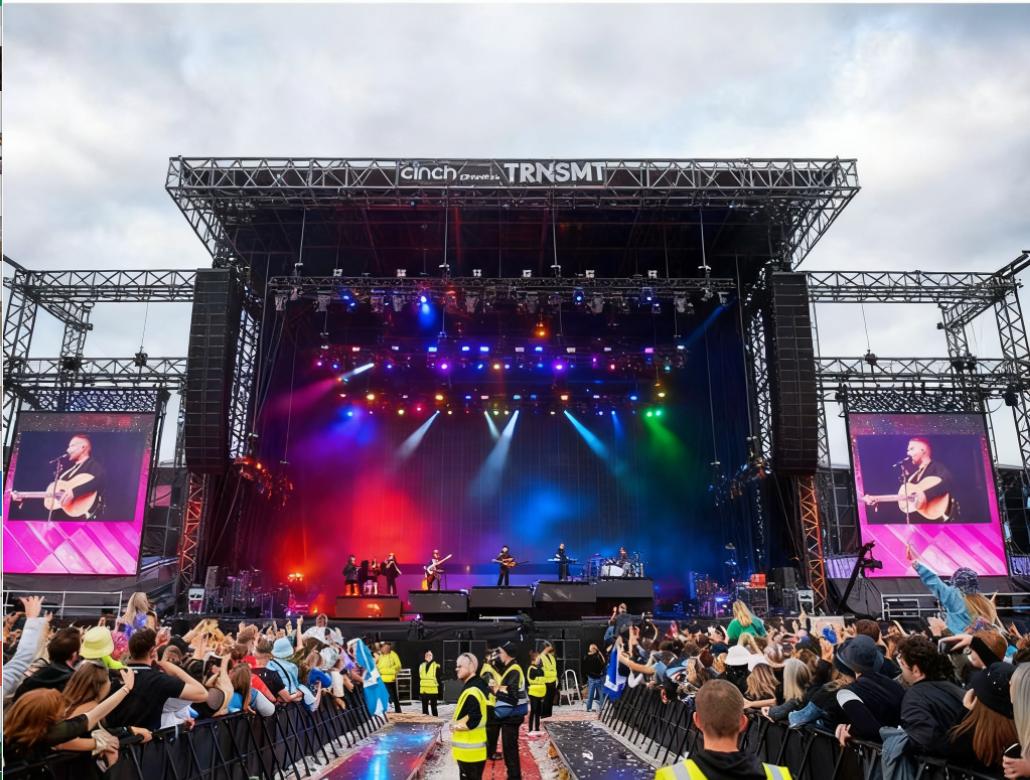

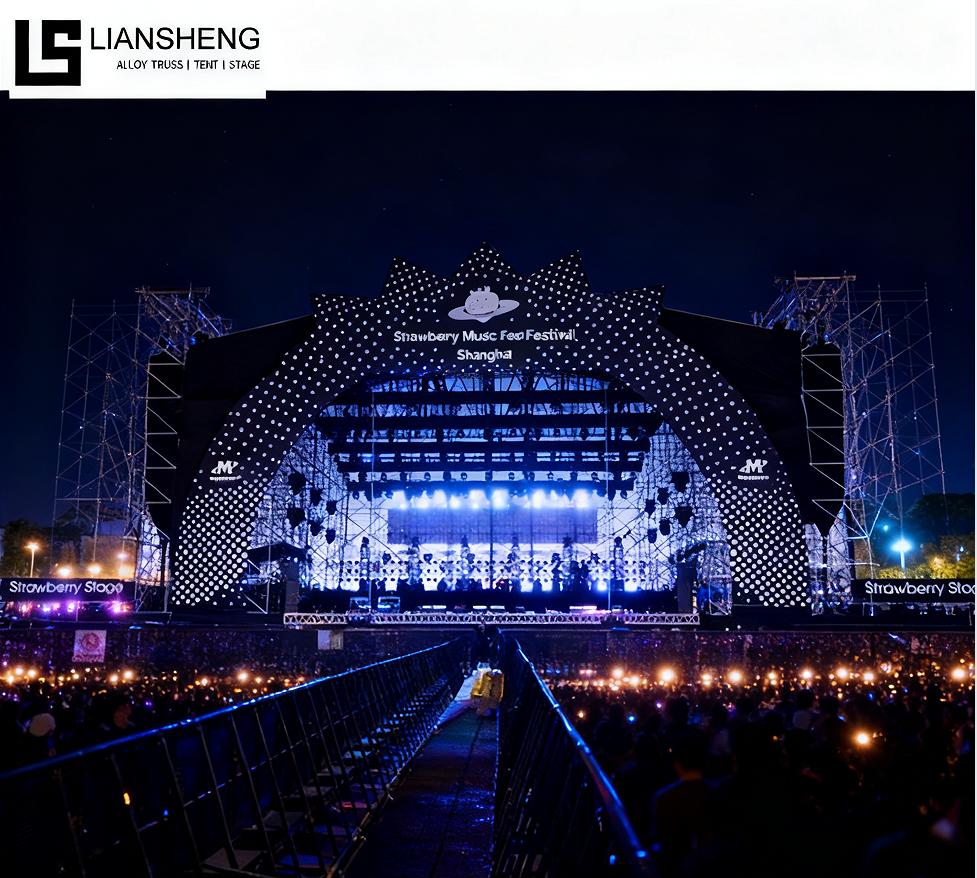

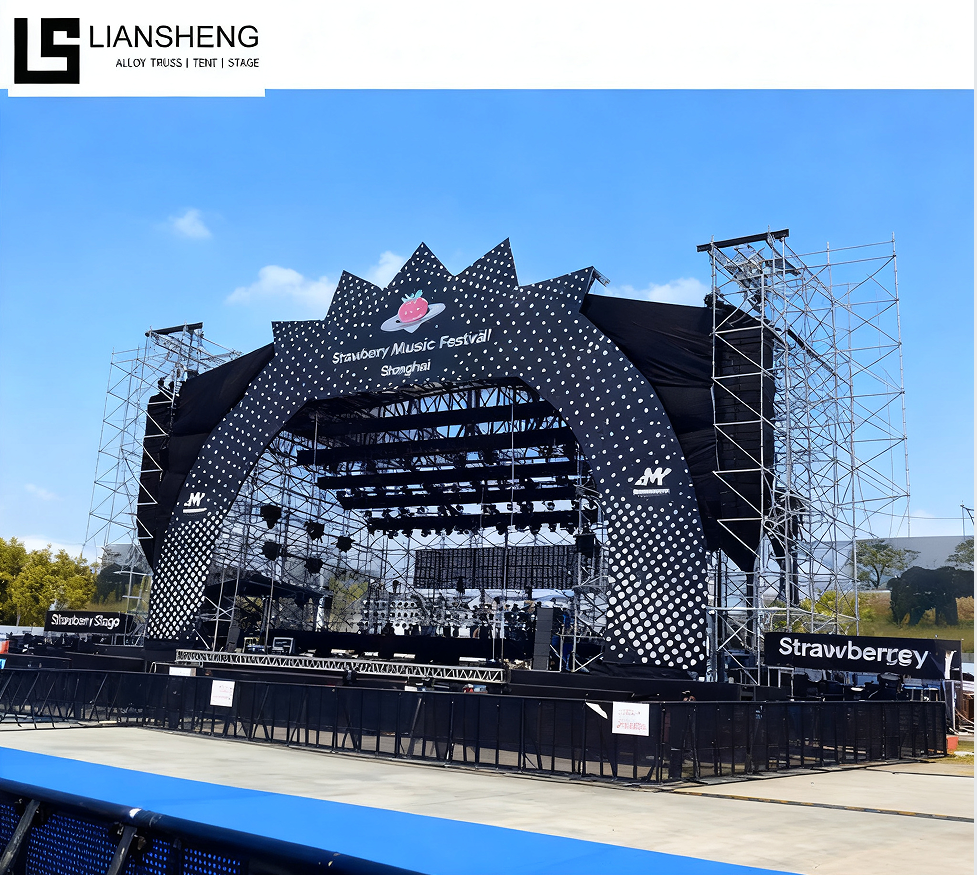

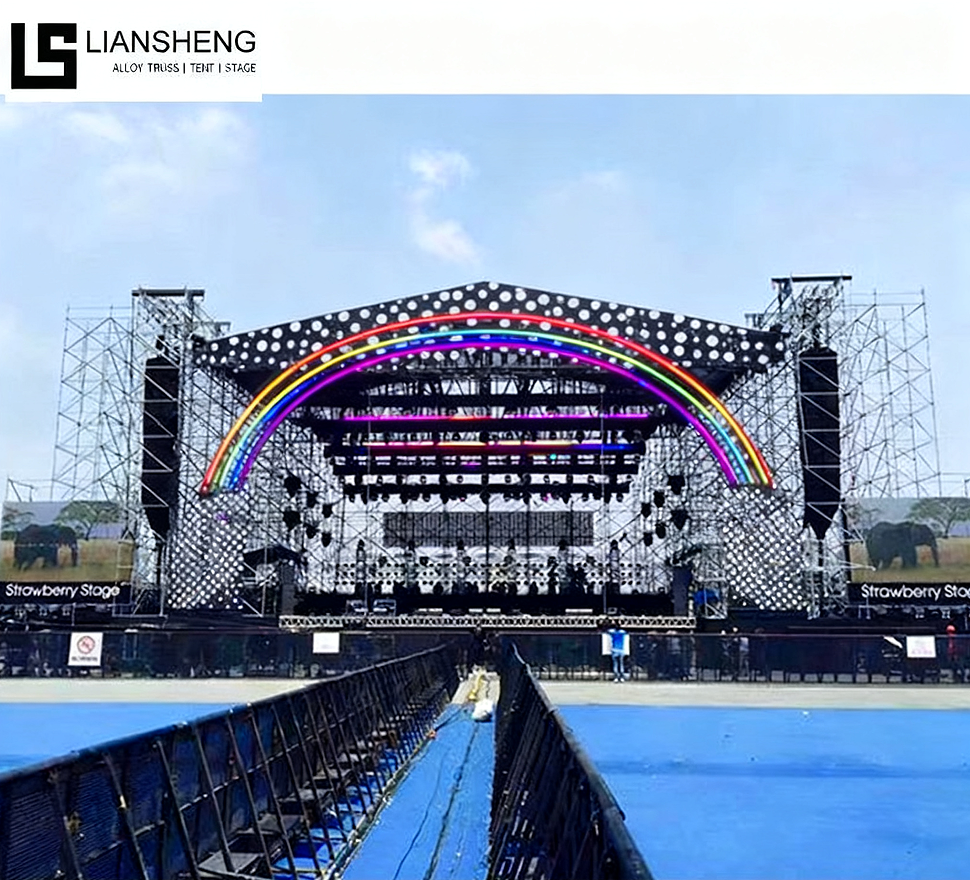

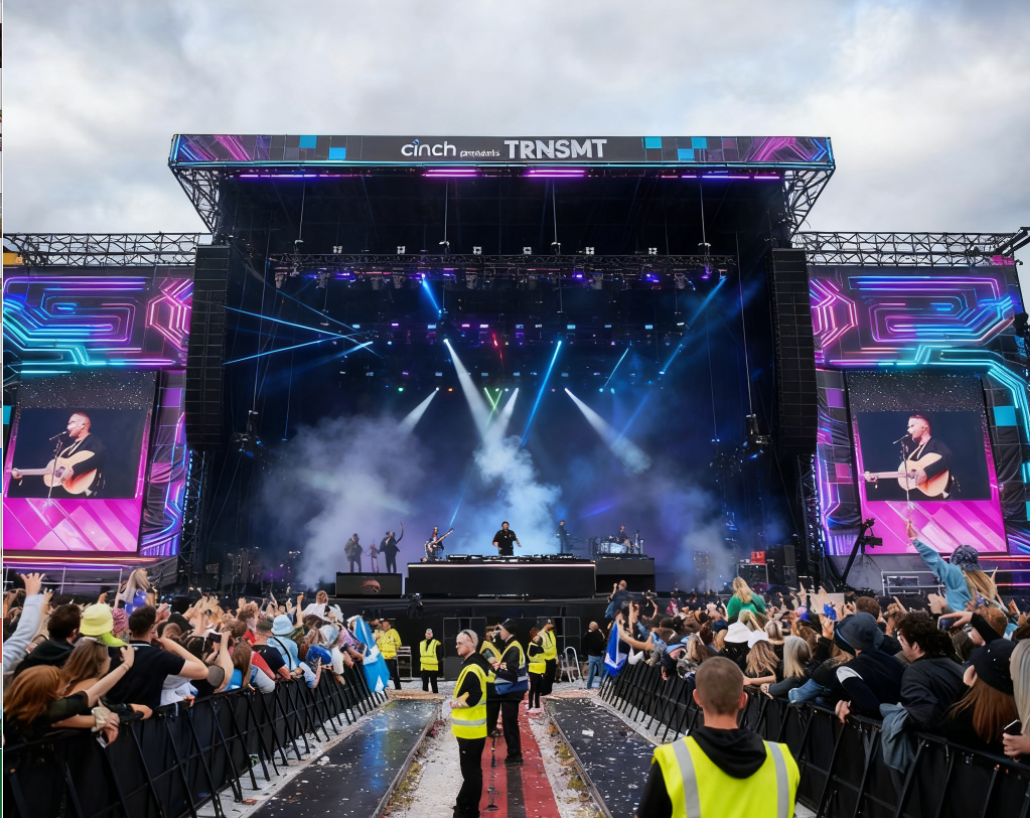

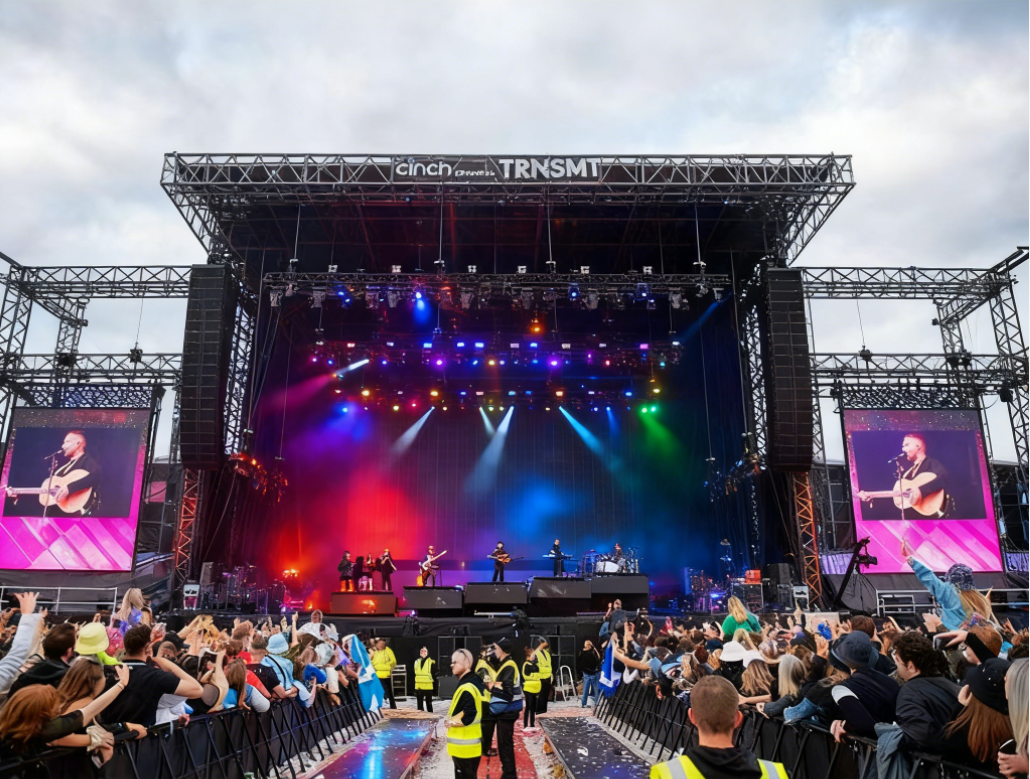

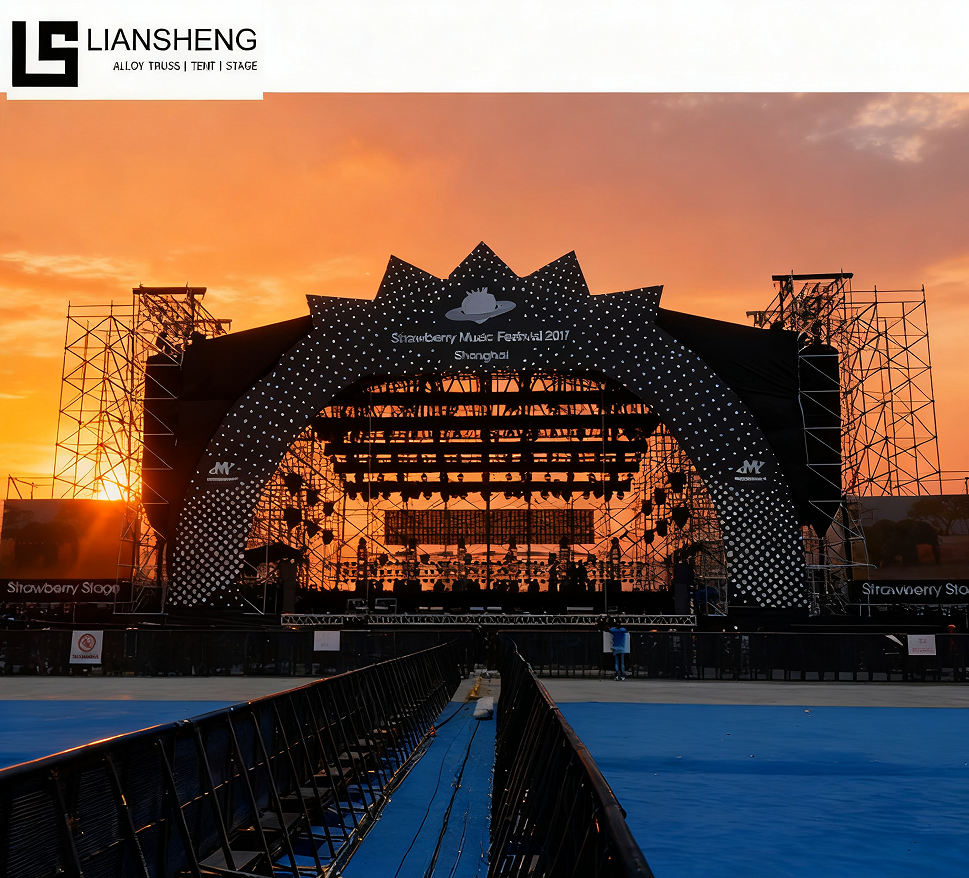

Main stages of large music festivals

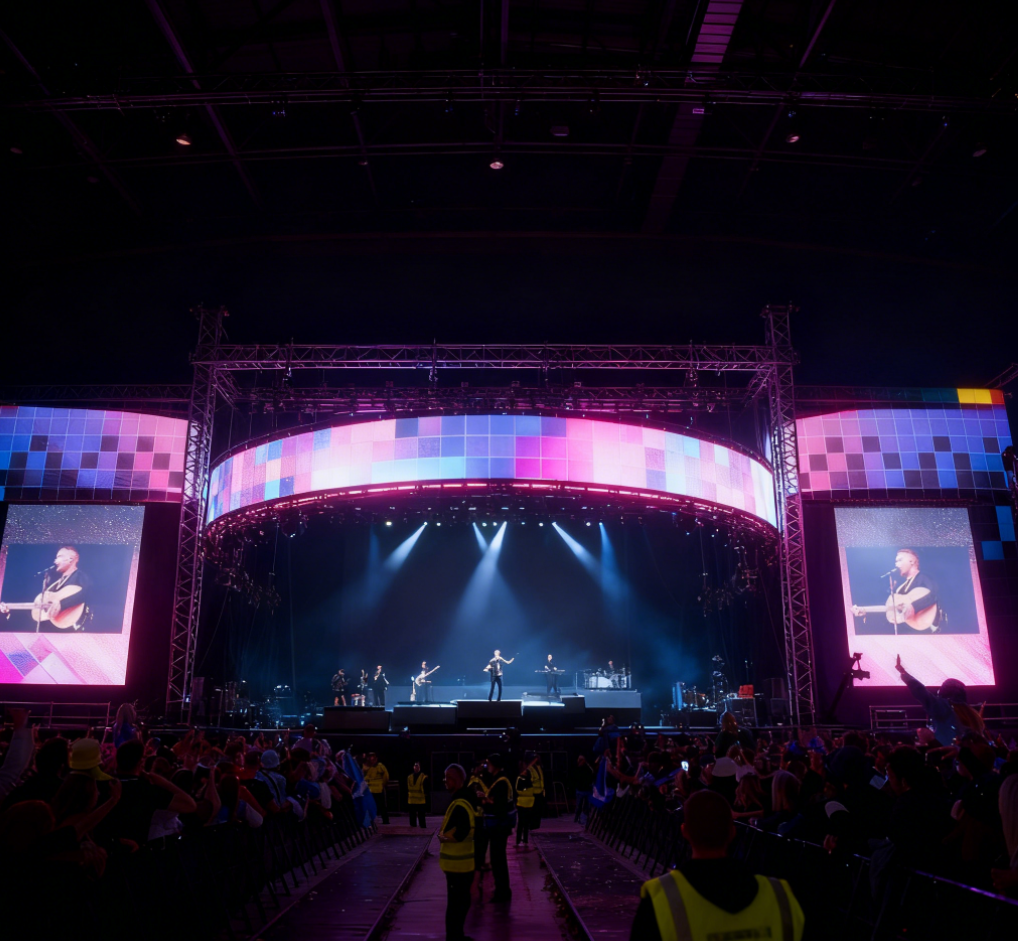

Touring concerts

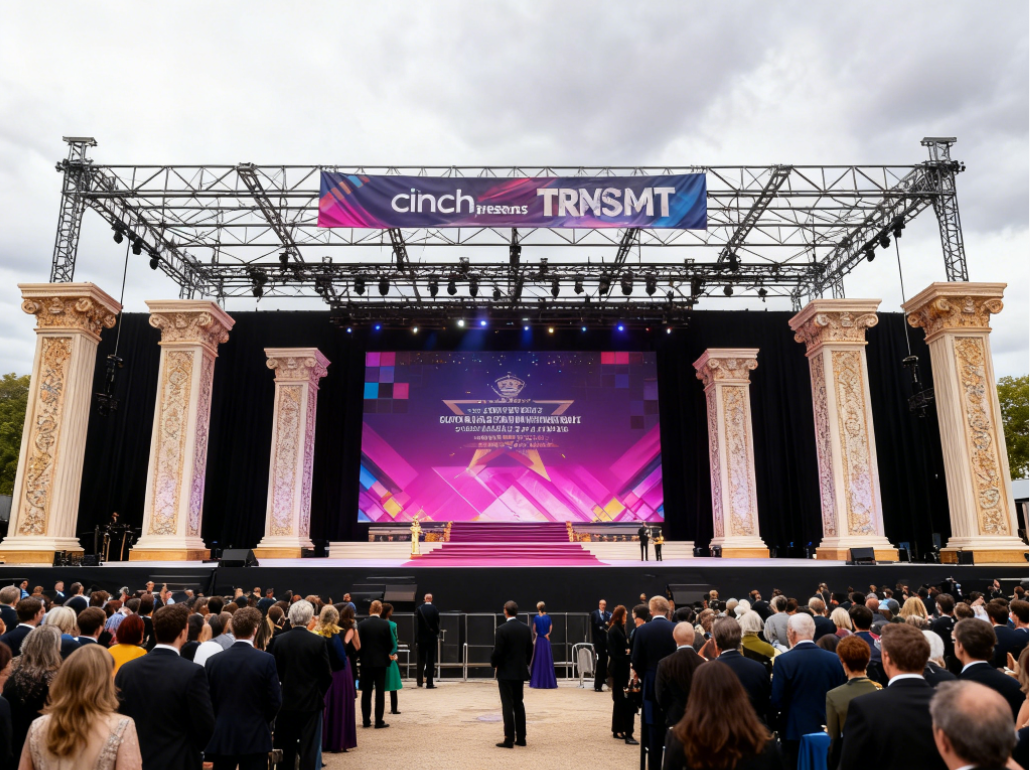

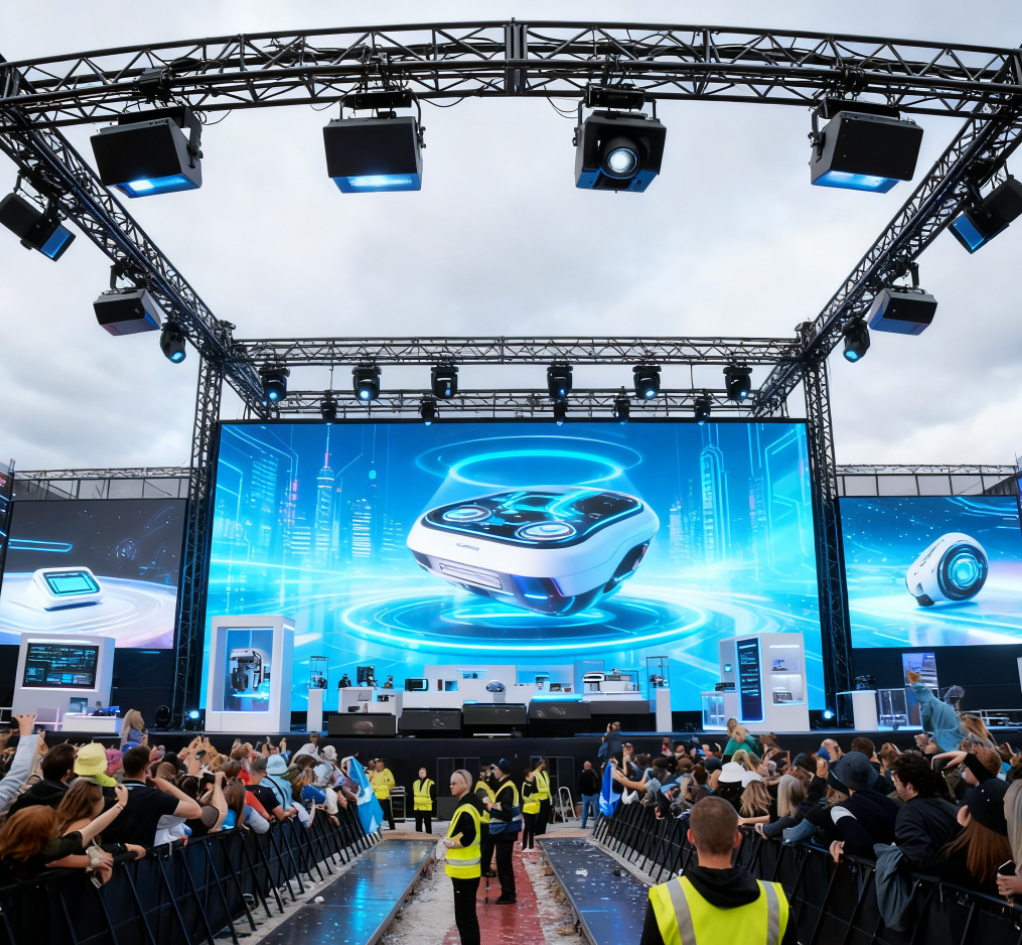

Product launches and brand celebrations
Large-scale exhibitions and display events
This product overview aims to provide a comprehensive understanding of this large stage truss. If you have specific requirements for load-bearing, wind resistance, or detailed configurations, it is recommended to consult professionals or suppliers. They can provide more precise calculations and solutions based on standards such as JGJ/T389-2016 'Technical Code for Application of Prefabricated Truss Formwork Support' and NEN-EN 17206-2:2024 regarding safety requirements for stands and truss lifts in entertainment technology.
