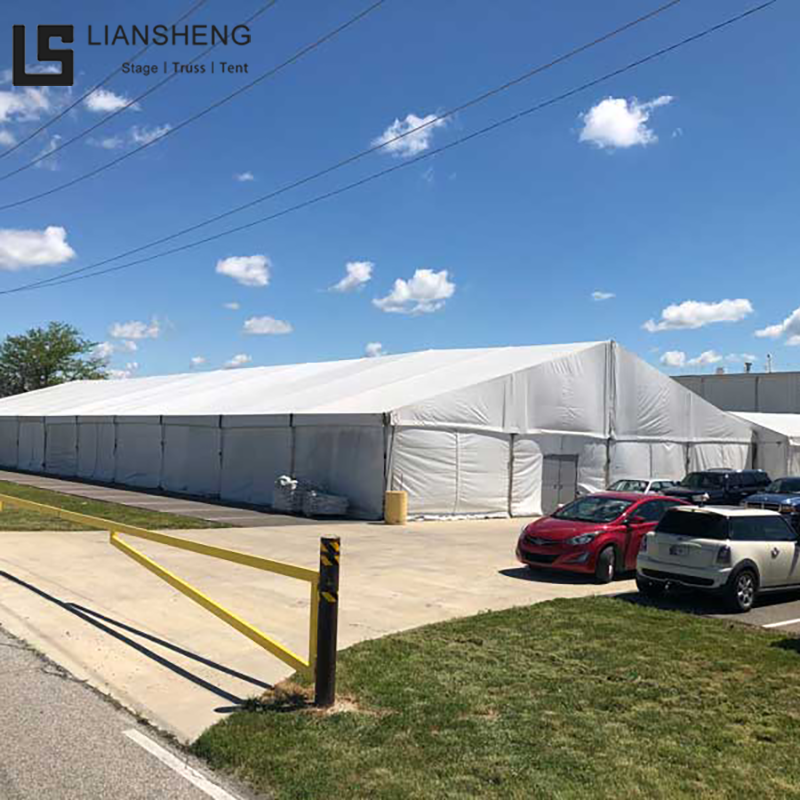

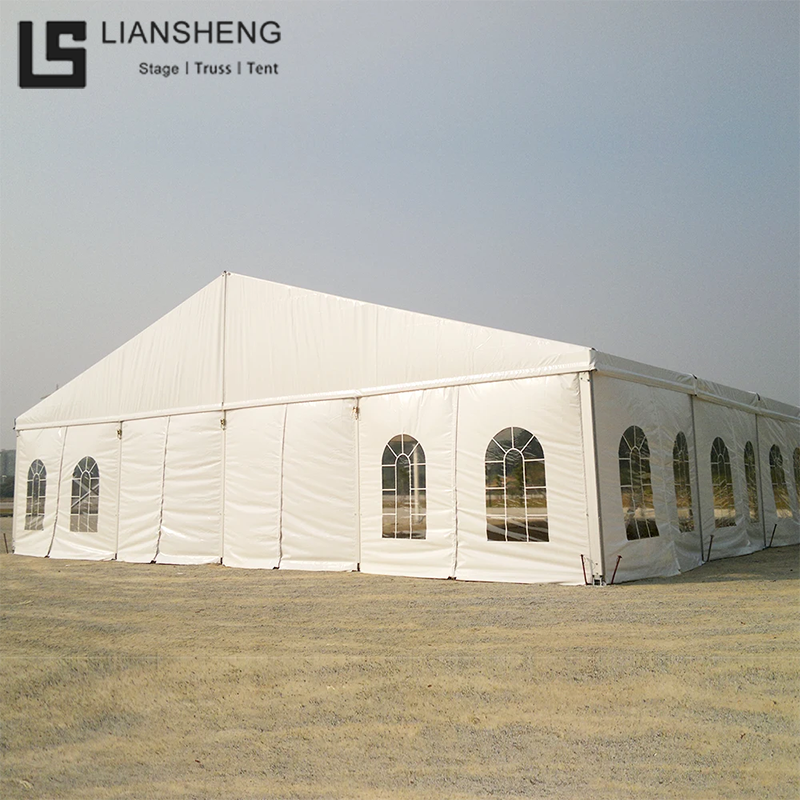

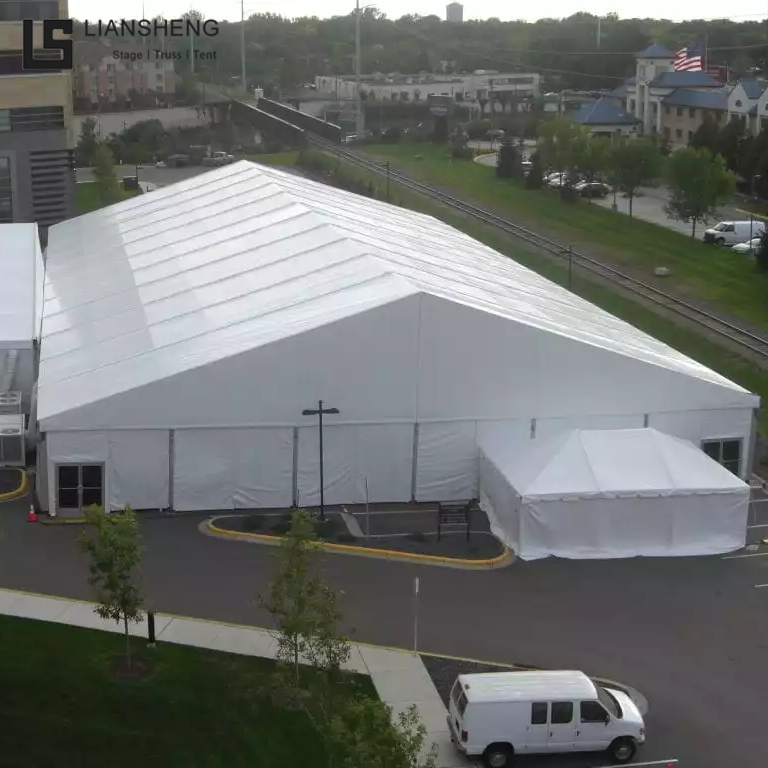

20m × 50m Large Storage Tent System — Flexible Space of Thousands of Square Meters, Quickly Constructed, Providing A Cost-effective Solution for Warehousing And Logistics

✨ Key HighlightsSpacious Column-Free Area: Interior has no supporting columns, achieving 100% space utilization, convenient for machinery and personnel operations.Quick Setup and Commissioning: Modular components allow a professional team to complete assembly in 3-5 days, significantly shortening the project cycle.Sturdy, Durable, and Reliable: National standard hot-dip galvanized steel pipes, wind resistance ≥ Level 10, snow load ≥ 100kg/㎡, suitable for various climate conditions.High Cost-Performance Choice: Costs far lower than traditional buildings, no complicated approval procedures required, high return on investment.Flexible and Expandable: Can be easily extended, relocated, or connected to other tents to meet future development needs.

Technical SpecificationsDimensions: 20m (W) × 50m (L) × 6-8m (eave height)Usable Area: 1000㎡Main Frame: National standard Q235 hot-dip galvanized steel pipes (main pipe specification: 114×2.5mm)Tent Fabric: 850g/m² PVC coated fabric (optional flame retardant, UV-resistant, self-cleaning functions)Wind Resistance: Stable up to Level 10 windSnow Load Capacity: 100kg/㎡Foundation Configuration: Ground anchor bolts/load-bearing plates (selected according to site)️ Standard ConfigurationMain Structure: Hot-dip galvanized main frame, bracing system, connectorsCover System: PVC fabric roofing and gable wallsVentilation System: Standard side windows or ventilatorsAccessories: Basic installation accessory kit

Application ScenariosLogistics warehouses and express sorting centersTemporary storage for industrial raw materials and finished productsConstruction site equipment and material storageAgricultural grain and machinery storageEmergency disaster relief supply storage

⚙️ Optional ConfigurationsSide Wall System: Roll-up doors, sliding doors, rigid panels, transparent skylightsVentilation Upgrades: Electric exhaust fans, side-opening window systemsEnvironmental Control: Insulated lining, air-conditioning interface, drainage systemSafety Features: Surveillance system mounts, lighting system, fire-fighting equipment interfacesFlooring: Various flooring solutions

✅ Service SupportProfessional Design: Provides structural calculation reports and site planning solutionsAll-in-One Service: Production, delivery, and installation one-stop serviceQuality Assurance: Main frame warranty 5 years, tent fabric warranty 3 yearsTechnical Support: 24/7 consultation, rapid after-sales response
