LS017
Liansheng
017
Liansheng Outdoor Aluminum Truss Stand (Model: LS017) is a professional, high-performance structural solution designed for stage construction and equipment support. As a factory-direct DJ Event Stage Truss and Lighting Support Truss, it balances lightweight portability with exceptional strength, positioning itself as the go-to choice for events requiring reliable, safe, and customizable stage setups. Engineered with premium aluminum alloy, this Heavy Duty Truss Stand meets international safety standards, making it ideal for both indoor and outdoor events.
This multi‑functional aluminum movable truss is suitable for event‑industry practitioners and various organizations:
Event‑planning companies that host concerts, festive events and corporate functions; DJs and production teams requiring stable support for lighting, audio and LED screens; wedding planners who create aesthetic and safe stage setups for wedding ceremonies and banquets; various educational institutions holding graduation ceremonies, talent shows and sports events; exhibition organizers constructing booths and display facilities for trade shows; theatre and performance groups in need of durable stage frameworks.
For teams executing outdoor corporate events and urban festivals, a set of stable, lightweight and reusable truss equipment serves as a core asset to cut operati
ng costs and elevate event quality. Most outdoor commercial performances, urban light festivals, street shows and garden celebrations are held in complex‑site environments, where temporary erected equipment demands high load‑bearing capacity, flatness, wind resistance and fast assembly. Our aluminum truss fits all kinds of open‑air outdoor scenarios, stands up to changeable weather, and maintains a rigid, distortion‑free structure. It can reliably support large lighting arrays, line‑array speakers and giant LED screens, enabling event execution teams to deliver consistent on‑site performance. It prevents event failures, client claims and reputational damage caused by equipment shaking, tilting and potential safety hazards.
For commercial brands, offline promotion teams and roadshow marketing agencies that frequently conduct cross‑city new‑product launches, brand tours and outdoor promotional campaigns, equipment undergoes frequent assembly‑disassembly cycles, long‑distance transportation and diverse operating conditions. Ordinary low‑quality trusses tend to rust, deform and suffer weld cracking, resulting in exorbitant costs for frequent repairs and replacements. Manufactured from high‑strength aerospace‑grade aluminum alloy, this truss features light dead weight, strong load‑bearing capacity, outstanding wear resistance and minimal assembly‑disassembly wear. Each unit can be recycled for long‑term repeated use, substantially lowering subsequent procurement, maintenance and replacement expenses. It is ideal for high‑frequency commercial roadshows, pop‑up activities and offline brand promotions, helping merchants control project budgets and improve event implementation efficiency.
It also perfectly meets the operational demands of venue‑rental companies and equipment rental suppliers. The rental industry prioritizes equipment retention value, turnover rate and repair frequency. Conventional trusses on the market suffer paint peeling, bending and loose joints after only a few uses, which not only spoils appearances but also triggers customer complaints, order cancellations and compensation claims. Our standardized modular truss boasts universal, interchangeable accessories and high assembly tolerance, allowing novice workers to complete rapid installation and greatly reducing man‑hours for on‑site setup. Boasting a neat, elegant appearance, stable load‑bearing performance and high safety factors, it supports high‑end weddings, celebrity performances, government public‑welfare events and official cultural‑sports competitions alike. It empowers rental companies to secure more mid‑to‑high‑end projects, raise unit prices and strengthen market competitiveness.
Featuring compliant structural design, even force distribution and neat erection without safety risks, this truss satisfies venue‑construction specifications for formal large‑scale public events and supports the delivery of indoor and outdoor public events of all sizes.
Key Specifications | Details |
Material | Main: Aluminum Alloy 6061-T6/6082-T6; Stage Platform: Plywood |
Stage Size | Standard: 1.22m×1.22m, 1.22m×2.44m (Customizable) |
Adjustable Height | 0.4-0.6m, 0.6-0.8-1.0m, 0.8-1.0-1.2m |
Loading Capacity | 750 kgs/sqm (evenly distributed) |
Truss Dimensions | Length: 2m (6.56ft); Outer Diameter: 290×290mm (11.42×11.42in); Main Tube: 50×4mm/50×3mm |
Tube Specifications | Vice Tube: 50×2mm/30×2mm; Brace Tube: 20×2mm/25×2mm/30×2mm |
Wall Thickness | 2mm (0.08in) |
Weight | 12kg (26.45lbs) per truss section |
Load Capacity (Point Load) | 2,072kg (4,568lbs) at centerpoint; 2,764kg (6,093lbs) distributed load |
Certifications | CE, ISO, TUV, SGS |
Selling Units | Single item |
Single package size | 60X60X60 cm |
Single gross weight | 10.000 kg |
Package Type | aluminum layher stage can be packaged by standard export box or standard wooden box |
Packaging | Standard export box or wooden box (60×60×60cm per unit) |

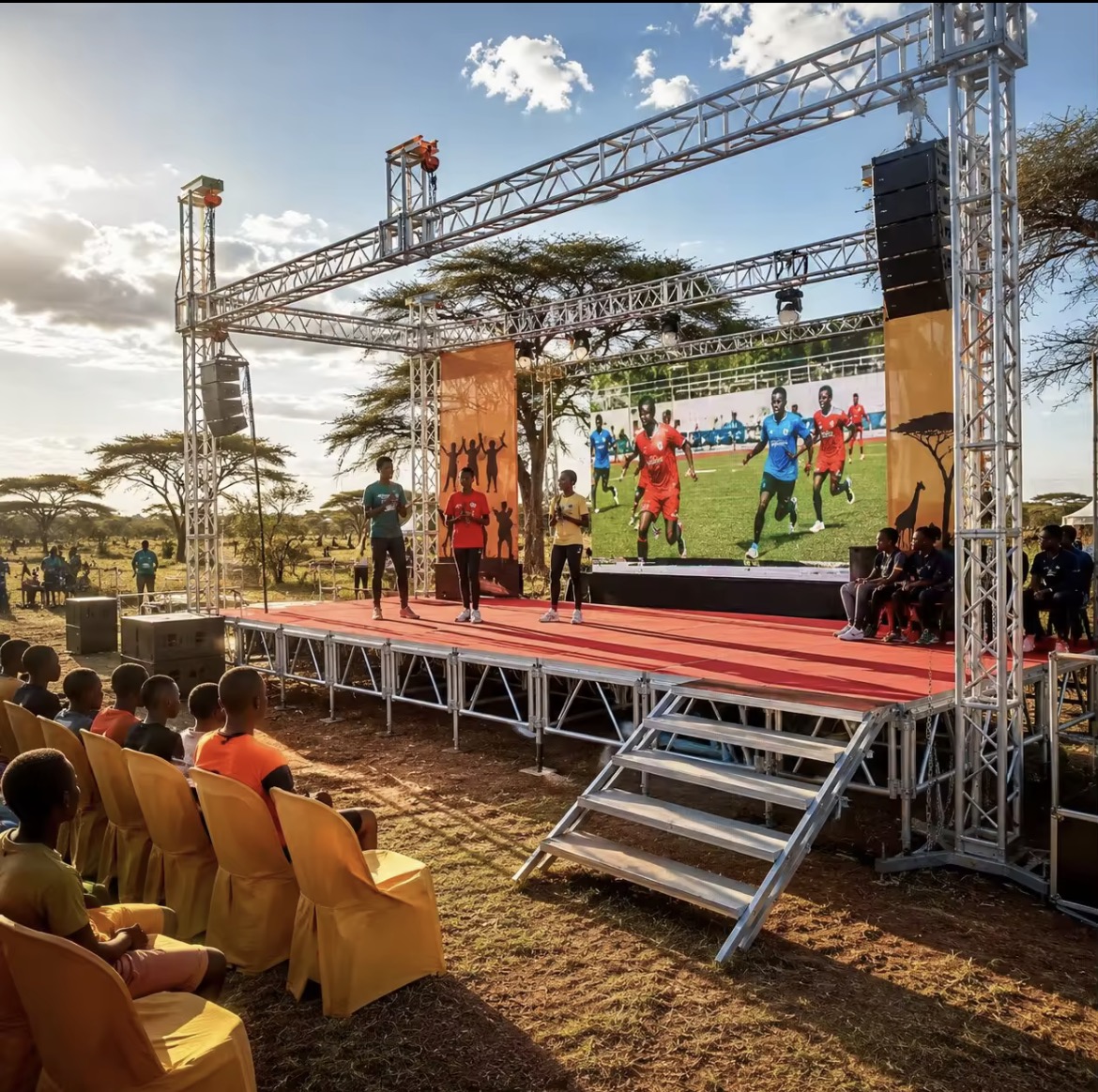

Concerts & Music Festivals: Supports heavy lighting rigs, sound systems, and LED screens, ensuring stable performance for large crowds.
Weddings & Private Events: Creates elegant stage platforms for ceremonies, speeches, and performances, with adjustable heights for venue flexibility.
Exhibitions & Trade Shows: Builds custom booth structures and display frames, showcasing products safely and attractively.
School & University Events: Provides durable stages for graduations, talent shows, and sports award ceremonies.
DJ Parties & Nightclubs: Offers portable, easy-to-assemble frameworks for lighting and sound equipment, enhancing event production.
Lightweight & Portable: Aluminum alloy construction makes transportation and setup effortless, reducing labor costs.
Exceptional Strength: 750 kgs/sqm loading capacity and TUV/CE-certified design ensure safety for heavy equipment.
Customizable Design: Adjustable height, custom size, and color options adapt to any event theme or venue.
Easy Installation: Spigot connection system allows quick assembly without specialized tools.
Anti-Rust & Durable: Aluminum alloy and corrosion-resistant components ensure long-term use indoors and outdoors.
Versatile Compatibility: Works with lighting, sound, and LED screen equipment, making it a multi-functional event tool.
Length | 2 Meters(6.56ft) |
Outer Diameter tube | 2 in (50mm).Diameter:11.42*11.42 in (290*290mm) |
Diagonal bracing | 0.15 in(20mm),Centerpoint load:4,568 1bs(2,072kg) |
Distributed load | 6,093 1bs (2,764kg) |
Wall thickness | 0.08 in (2mm).Weight:26.451bs(12kg) |
Approvals | TUV,CE,SGS |
Aluminum Alloy 6061-T6/6082-T6
Main Tube | Vice Tube | Brace Tube |
50*4mm/50*3mm | 50*2mm/30*2mm | 20*2mm/25*2mm/30*2mm |
Liansheng’s 13 years of truss manufacturing experience guarantee unmatched quality:
Premium Aluminum Alloy: 6061-T6/6082-T6 aluminum alloy is chosen for its high strength, lightweight, and corrosion resistance – ideal for event equipment.
Precision Fabrication: Truss tubes are cut and welded with strict quality control, ensuring structural integrity and load-bearing capacity.
Spigot Connection Technology: Secure, easy-to-use spigot or screw connections enable fast setup and disassembly, with stable performance.
Certified Safety: Meets CE, ISO, TUV, and SGS standards, ensuring compliance with international event safety regulations.

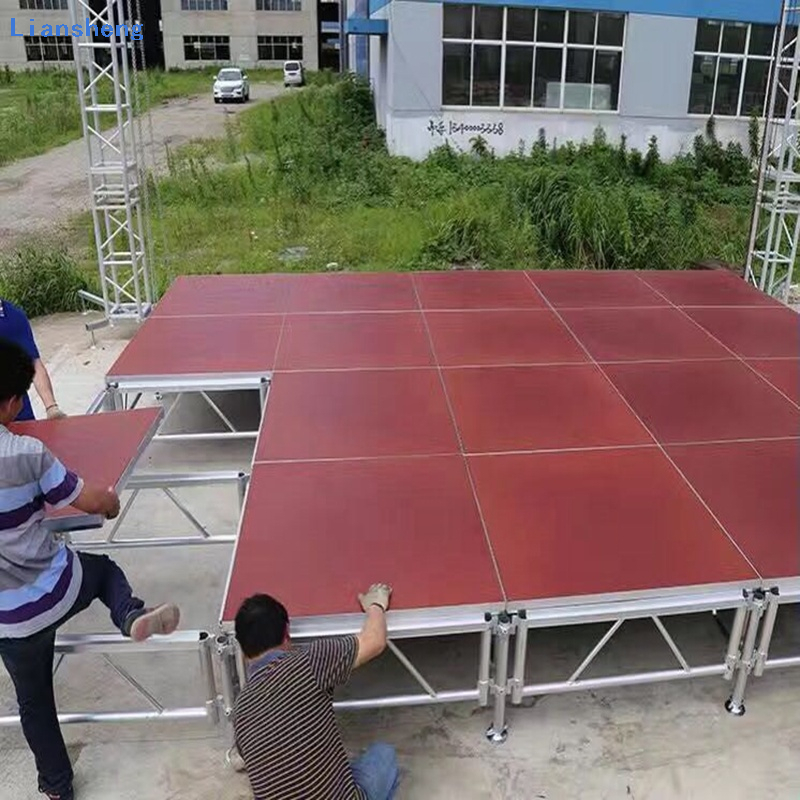

Durable Plywood Stage: High-quality plywood provides a stable, non-slip surface for performers and equipment.
13 Years of Expertise: Liansheng has over a decade of experience producing high-quality aluminum trusses, trusted by event professionals worldwide.
Factory-Direct Supply: Eliminates middlemen for competitive pricing while maintaining premium quality.
Free Samples: Offers free product samples (shipping cost covered by customer) for quality verification.
1-Year Warranty: Provides a 1-year warranty on all truss components, ensuring peace of mind.
Flexible Payment: Supports T/T, Western Union, PayPal, and Visa, with up to 120 days credit for qualified buyers.
Shanghai Port Shipping: Convenient loading port for global delivery, ensuring timely arrival.
