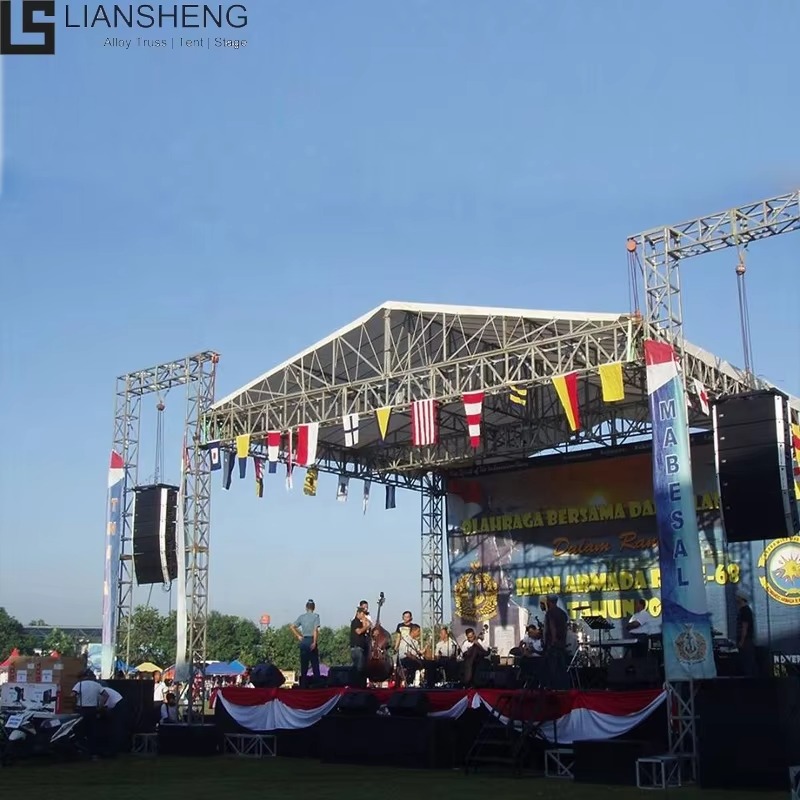

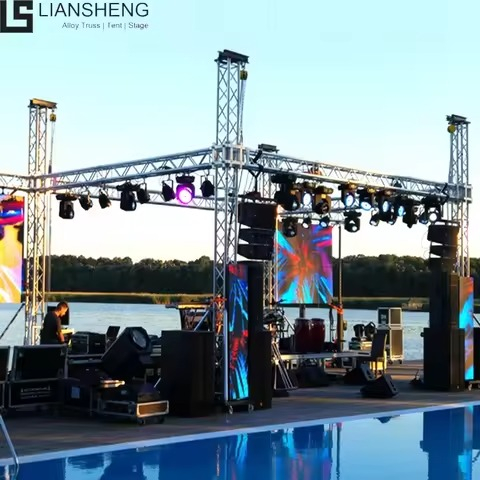

Liansheng · Storm Series | 10m x 7m Professional Performance Grade Truss Stage System

1. Military-grade robust structure, safety is paramount

High-strength materials: The main truss employs Q235B carbon steel or higher-grade specifications per national standards, treated with high-strength hot-dip galvanization for rust and corrosion resistance. Its service life far exceeds ordinary black steel tubing trusses, withstanding diverse harsh outdoor environments.

Scientific Structural Mechanics: Employs triangular stability principles and a dual-direction bracing system (optional), significantly enhancing the entire frame's torsional resistance and stability. Minimizes sway even during intense performer movements, ensuring safety.

Heavy-Duty Load Capacity: The stage platform boasts a static load capacity of up to 500kg/㎡ and a dynamic load capacity exceeding 300kg/㎡. It effortlessly supports multiple musicians, heavy keyboard stands, drum kits, and large audio equipment with rock-solid stability.

2. Modular Quick-Assembly Design: Efficiency is Paramount

“Building Block” Construction: All components (columns, beams, braces, platform panels) are prefabricated modules connected via pin or flange bolts. Precise engineering eliminates on-site welding or complex tools, allowing ordinary workers to rapidly assemble and disassemble, drastically reducing labor and time costs.

Unified Standards, Exceptional Scalability: Features 1m x 1m or 1m x 2m modular designs. The 10m x 7m configuration shown here is built from standard components and supports unlimited horizontal and vertical expansion with other systems, enabling effortless future upgrades to larger stages.

3. Details Crafted for Professional Performances

Professional Stage Height: Offers multiple standard height options (e.g., 0.6m, 0.8m, 1.0m, 1.2m). For heights of 0.8m and above, safety stairs and guardrails are strongly recommended to ensure performer safety during stage access.

Neat Cable Management: Stage panels feature pre-cut cable access holes, while truss structures facilitate lighting and audio cable routing. This maintains a tidy stage surface, eliminates tripping hazards, and delivers a more professional live performance experience.

Anti-Slip & Protection: Stage panels feature deep anti-slip textures (diamond plate/anti-slip sand texture) and undergo waterproof and weather-resistant treatment to ensure safety during rainy performances. Stage legs feature adjustable screws and anti-slip pads for effortless leveling on uneven surfaces.

4. Comprehensive Application Scenarios

Livehouses & Tours: Small-to-medium concerts, band tours, festival side stages.

Commercial Events: Product launches, corporate galas, mall promotions, opening ceremonies.

Public Gatherings: Campus celebrations, community festivals, street performances.

Permanent Venues: Bar performance stages, TV studio sets, permanent small theaters.

III. Technical Specifications (Example Configuration for 10m x 7m System)

Item    Parameter/Description

System Name    Liansheng · Storm Series Truss Stage System

Stage Dimensions    Width 10m x Depth 7m x Height 0.6/0.8/1.0m (Optional)

Single Module Dimensions    1.0m (L) x 1.0m (W) or 2.0m (L) x 1.0m (W)

Main Material    High-strength carbon steel (Q235B), hot-dip galvanized

Static Load Capacity    > 500 kg/㎡

Dynamic Load Capacity    > 300 kg/㎡

Connection Method    Peg-type quick assembly / Flange bolt fastening

Decking    High-strength anti-slip plywood (18mm thick) or Aluminum alloy anti-slip plate

Surface Finish    Black matte spray paint (standard), other colors available

Standard Components    Uprights, beams, braces, decking, adjustable feet

Recommended Accessories    Safety stairs, guardrails, truss bases, transport carts
