Outdoor trade shows demand physical structures that protect valuable assets and project brand authority. You need a shelter that withstands unpredictable weather while maintaining a sharp, professional aesthetic. Exhibitors constantly balance logistical ease with structural reliability. Flimsy pop-up canopies collapse under moderate winds, risking inventory and reputation. Conversely, over-engineered temporary buildings require heavy machinery, massive labor crews, and complex logistics planning. This guide provides a technical breakdown of how to evaluate materials, engineering specifications, and supplier capabilities. You will learn how to select a high-yield, compliant exhibition pagoda tent that elevates your event strategy. We will explore structural integrity, modular scalability, and the safety certifications required by major event venues.
Material dictates lifespan: Hard-pressed extruded aluminum frames offer the necessary weight-to-strength ratio for frequent transport and high wind resistance.
Compliance is non-negotiable: Venue approvals require verifiable fire retardancy (e.g., DIN 4102 B1, NFPA 701) and certified wind-loading documentation.
Modularity drives scalability: The ability to link multiple tents with rain gutters allows exhibitors to adapt their footprint to varying plot sizes across different events.
Selecting the right dimensions requires analyzing your standard plot allocations against venue zoning restrictions. Standard pagoda footprints range from compact 3x3m units up to expansive 10x10m structures. A 5x5m tent provides exactly 25 square meters of usable interior space. However, you must account for the physical footprint of the base plates and anchoring systems. Fire marshals frequently enforce strict setback rules, requiring a minimum clearance between your structure and adjacent exhibitor plots. Always verify that your chosen dimensions leave sufficient perimeter space for mandatory safety walkways and structural anchoring.
Conducting a proper site survey prevents day-of-show disasters. Follow these steps before finalizing your footprint:
Measure the exact physical boundaries of your allocated plot, noting any uneven terrain or grade changes.
Identify overhead obstructions such as venue lighting rigs, tree branches, or low-hanging cables that might interfere with the high-peak roof.
Locate underground utilities if staking is permitted, ensuring you do not drive steel anchors into water lines or electrical conduits.
Map out the required fire marshal setback zones to guarantee your base plates do not cross into public aisles.
The architectural advantage of a pagoda lies in its high-peak roof. While standard event canopies max out around three meters in height, a pagoda peak often exceeds five meters. This elevation acts as a visual beacon across a crowded exhibition floor. Inside, the absence of a center support pole guarantees completely unobstructed usable space. You must balance this visual dominance with practical interior layouts. Plan your spatial requirements around product display racks, client meeting tables, and interactive digital kiosks. The clear-span interior allows for flexible zoning, separating public engagement areas from private consultation spaces.
When mapping the interior, consider the flow of foot traffic. A 6x6m structure offers 36 square meters, which comfortably accommodates a central display vehicle or heavy machinery while leaving a one-meter perimeter for attendees to walk. If you plan to host seated meetings, allocate at least nine square meters for a standard conference table and four chairs, ensuring the remaining space does not feel cramped.
Transport volume directly impacts your event logistics. You must establish baseline requirements for setup time, labor headcount, and vehicle capacity. A commercial-grade 5x5m frame breaks down into aluminum profiles that typically measure no longer than three meters. These components fit comfortably inside standard commercial sprinter vans. Larger 10x10m structures feature longer roof beams that necessitate flatbed trucks or dedicated freight transport.
Furthermore, evaluate your off-season warehouse footprint. The ability to stack base plates and bundle aluminum profiles tightly reduces long-term storage requirements. When packing the unit, always separate the heavy steel components from the aluminum profiles to prevent deep scratches during transit. Store the PVC fabric rolls in heavy-duty transport bags, keeping them elevated off the warehouse floor to protect against moisture and rodent damage.
Frame material dictates both structural longevity and transport efficiency. Hard-pressed extruded aluminum alloy, specifically grades like 6061/T6, stands as the industry standard for professional event structures. Unlike steel, an aluminum pagoda tent naturally resists rust and corrosion. This characteristic proves vital for events hosted in coastal regions or high-humidity environments. Aluminum provides an exceptional weight-to-strength ratio. It reduces shipping weight significantly while maintaining the rigidity required to support heavy roof canopies and withstand lateral wind forces. Steel frames, while strong, introduce unnecessary weight and require constant powder-coating maintenance to prevent structural degradation.
The extrusion process hardens the aluminum, allowing it to take repeated impacts during assembly and dismantling without bending. When inspecting a frame, look at the wall thickness of the main profiles. A minimum wall thickness of 2.5mm is required for commercial applications, while larger 10x10m structures demand 3mm or thicker profiles to prevent deflection under heavy wind loads.
The quality of your PVC fabric determines weatherproofing and interior comfort. Professional structures utilize industrial-grade PVC coated polyester, typically ranging from 650 to 850 grams per square meter (g/sqm). The roof canopy demands an 850g/sqm block-out fabric. This opaque material prevents UV penetration, eliminating the greenhouse effect and keeping the interior significantly cooler. It also prevents structural shadows from casting onto your interior displays. Sidewalls often utilize 650g/sqm translucent PVC to allow natural ambient light.
Tensioning systems separate commercial structures from recreational canopies. Avoid bungee cord attachments. Professional systems utilize keder tracks. The PVC fabric features a thick beaded edge (keder) that slides directly into channeled grooves within the aluminum profiles. This mechanical connection creates a drum-tight surface, eliminating wind flap, preventing water pooling, and delivering a sleek, architectural aesthetic.
The integrity of the frame relies heavily on its connection points. High-stress junctions, such as corner eaves and the peak apex, require galvanized steel inserts. These heavy-duty steel connectors slide inside the aluminum profiles, locking the frame together and absorbing dynamic wind loads. Base plates must feature multiple anchoring holes to accommodate heavy-duty steel stakes or concrete wedge anchors.
Structural engineering calculations should certify the tent for specific wind-loading capacities, typically required to withstand 80 to 100 km/h gusts. For extreme weather events, evaluate the structure's compatibility with temporary HVAC systems. Look for integrated ventilation ports at the roof peak to manage condensation and allow proper air circulation when sidewalls are fully closed.
Component | Recreational Canopy | Commercial Pagoda Tent |
|---|---|---|
Frame Material | Thin-wall steel or weak aluminum | Hard-pressed extruded aluminum (6061/T6) |
Fabric Density | 400g/sqm or lower (Polyester) | 650 - 850g/sqm PVC coated polyester |
Tensioning System | Velcro straps and bungee cords | Integrated Keder track channels |
Wind Resistance | Prone to collapse above 40 km/h | Engineered for 80 - 100 km/h |
Connectors | Plastic or cast alloy joints | Hot-dip galvanized steel inserts |
Your physical structure serves as your largest promotional asset. When designing a custom trade show tent, you must choose between dye-sublimation and UV printing for your graphics. UV printing cures ink directly onto the surface of the heavy-duty PVC, offering exceptional resistance to fading under prolonged sun exposure. This method ensures your corporate colors remain vibrant across multiple event seasons. Pay attention to valance styles. A straight valance offers a modern, sharp architectural look, whereas a scalloped valance provides a traditional aesthetic. The valance also serves as prime real estate for high-visibility logo placement.
To maximize the lifespan of your printed graphics, implement a strict cleaning protocol. Never use harsh chemical solvents or abrasive brushes on printed PVC. Instead, use a diluted mild detergent and a soft microfiber mop. Clean the fabric while it is fully tensioned on the frame, then allow it to air dry completely before folding. Packing damp fabric guarantees mold growth, which permanently stains the white PVC and ruins the printed graphics.

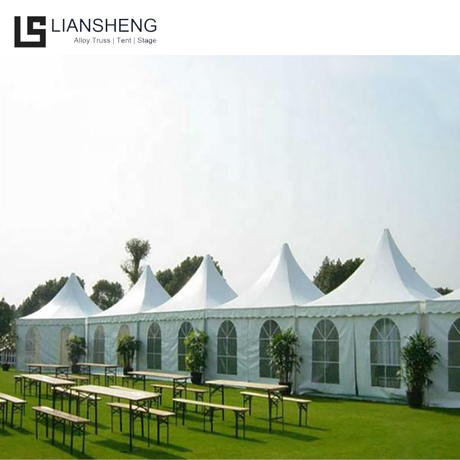

Scalability ensures your investment remains relevant as your event presence grows. A high-quality trade show pagoda tent features a modular design. You can connect multiple units to create expansive, multi-room VIP experiences. This requires seamless integration of PVC rain gutters. The gutter features keder edges on both sides, sliding directly into the adjacent profiles of two connected tents. This creates a watertight seal, directing rainfall away from the interior footprint. Structural joining brackets lock the frames together, ensuring the combined structure moves as a single engineered unit under wind stress.
When linking structures, you must ensure the ground is perfectly level. Even a slight elevation difference between two connected tents will cause the rain gutter to slope incorrectly, leading to water pooling and eventual leakage. Use adjustable base plates to compensate for minor ground variations, ensuring the eave lines of both tents match perfectly before installing the joining brackets.
Elevate the premium feel of your space by upgrading from soft PVC sidewalls to solid structural panels. ABS hard walls provide enhanced security for overnight inventory storage, while glass panels create an inviting, high-end showroom environment. These solid walls slide into the same keder tracks used for PVC fabric. Consider integrating a cassette flooring system. This interlocking floor creates a perfectly level surface over uneven grass or gravel, providing a stable foundation for heavy machinery displays.
The aluminum frame also supports integrated mounting points for professional AV equipment and track lighting. When hanging heavy lighting rigs, always consult the manufacturer's point-load specifications. Never clamp heavy fixtures directly to the center of a roof beam without verifying its deflection limits. Instead, mount heavy equipment near the corner eaves where the galvanized steel inserts provide maximum structural support.
Venue safety compliance remains the most critical hurdle for outdoor exhibitors. International event spaces enforce strict fire safety codes. Your fabric must carry verified fire retardancy certifications, such as DIN 4102 B1 (European standard) or NFPA 701 (North American standard). You must maintain physical certification tags permanently welded or sewn into the tent fabric. Fire marshals conduct on-site inspections prior to event openings. Failure to produce these tags, alongside the corresponding laboratory certificates, will result in immediate shutdown and voided liability insurance policies.
Keep digital copies of all fire certificates on your phone and physical copies in your event binder. Some strict municipalities require the fabric to be tested locally, regardless of international certifications. Always submit your documentation to the venue's health and safety officer at least thirty days before the event to clear any bureaucratic hurdles.
Securing an outdoor exhibition tent requires precise engineering, especially when traditional staking is prohibited. Many urban trade shows take place on concrete plazas or asphalt parking lots where surface penetration is strictly forbidden. In these scenarios, you must utilize heavy-duty ballast systems. Concrete weight plates or specialized cast-iron weights secure the base plates. You must calculate the required ballast based on the tent's specific dimensions, the venue's historical wind data, and structural engineering guidelines.
Never rely on improvised water barrels, as they often fail to meet the exact weight requirements needed to prevent uplift during sudden wind gusts. A standard 5x5m structure might require upwards of 250kg of ballast per leg to meet commercial wind load ratings. Ensure your transport logistics account for moving this massive amount of dead weight onto the site.
On-site execution presents numerous logistical risks. Improper fabric tensioning remains a primary failure point. If the roof canopy lacks drum-tight tension, water will pool during heavy rain, eventually collapsing the frame under the sheer weight of the water. Missing proprietary connectors or specialized pins will halt construction entirely. To mitigate these risks, mandate a complete dry-run assembly at your facility before shipping the structure to the event site.
Follow this standard assembly sequence to ensure safety and efficiency:
Layout the base plates and measure the exact diagonal distances to ensure a perfect square footprint.
Assemble the roof perimeter and insert the corner eave knuckles.
Build the roof cone on the ground, connecting the rafters to the center peak apex.
Slide the PVC roof cover through the keder tracks while the frame is still at ground level.
Lift one side of the structure to insert the first set of vertical legs, then repeat for the opposite side.
Apply final tension to the roof canopy using the built-in mechanical tensioners at the base of the eaves.
Procuring a commercial-grade structure requires looking beyond the initial acquisition. You must analyze the lifecycle value over a multi-year exhibition calendar. Compare the upfront investment against the cumulative drain of recurring rental fees, specialized freight logistics, and ongoing maintenance. Owning your structure eliminates the uncertainty of rental inventory quality and allows for permanent, high-impact branding. A well-maintained aluminum frame will perform reliably for over a decade, requiring only occasional replacements of the PVC fabric panels as branding needs evolve.
When you own the asset, you control the deployment schedule. You no longer have to negotiate peak-season rental rates or settle for sub-standard equipment when local rental houses run out of inventory. The structural frame becomes a permanent fixture in your marketing arsenal, ready to deploy at a moment's notice.
The true test of a reliable pagoda tent supplier lies in their after-sales infrastructure. Event logistics are brutal on equipment. Pins get lost, base plates get scratched, and sidewalls occasionally suffer puncture damage. You need guaranteed, rapid availability of replacement parts. Ensure your supplier stocks individual components—from specific galvanized knuckles to single fabric panels—so you never have to replace an entire unit due to minor localized damage.
Scrutinize the manufacturer's warranty. Look for distinct coverage terms separating frame integrity (often 5 to 10 years) from fabric degradation and seam splitting (typically 1 to 3 years). A supplier that refuses to sell individual replacement parts is a massive liability. You must be able to order a single replacement roof tension cable without being forced to buy a completely new hardware kit.
Protect your investment by rigorously vetting the manufacturing source. Watch for clear red flags during initial communications. An inability to provide detailed structural engineering reports, 3D CAD mockups, or verified fire compliance certificates indicates a severe lack of professional capability. Before issuing a purchase order, demand to see material testing reports for both the aluminum extrusion alloy and the PVC fabric density.
Request client references from other frequent exhibitors to verify the supplier's track record regarding delivery timelines and component accuracy. A reputable manufacturer of a portable pagoda tent will gladly provide engineering documentation stamped by a certified structural engineer. This paperwork is not just a formality; it is the exact documentation the venue fire marshal will demand before allowing you to build on their property.
Request physical PVC fabric samples from your shortlisted vendors to verify block-out properties and keder track thickness.
Demand comprehensive structural engineering summaries that clearly state maximum wind-load capacities and exact ballast requirements for non-staked installations.
Map out your annual event footprint to determine if a single large structure or multiple modular, connectable smaller tents offer the best logistical flexibility.
Audit your current transport vehicles and warehouse space against the crated dimensions of the proposed aluminum frame profiles.
A: A commercial-grade aluminum pagoda tent, when properly anchored according to engineering specifications, can typically withstand sustained winds of 80 to 100 km/h. Exact ratings depend on the frame profile thickness, the tensioning system, and whether the structure is secured with heavy-duty steel stakes or adequate concrete ballast.
A: Pop-up canopies use thin, folding accordion frames and lightweight polyester, suitable only for calm weather. A portable pagoda tent features a rigid, hard-pressed extruded aluminum frame, heavy-duty PVC fabric, and mechanical keder track tensioning, designed for long-term deployment and severe weather resistance.
A: Yes, most municipalities and major venues require specific permits for structures exceeding a certain square footage. You will also need to provide the fire marshal with structural engineering certificates and verified fire retardancy tags. Liability insurance is universally required by event organizers.
A: A standard 5x5m structure can be assembled by a trained crew of three to four people in approximately one to two hours. Because the aluminum components are relatively lightweight and manageable by hand, a forklift is generally not required for this specific size.
A: Yes. Professional modular structures allow you to slide the existing PVC roof out of the aluminum keder tracks and replace it with a newly branded canopy. This modularity ensures your frame remains a long-term asset even if your corporate branding changes.
A: When staking is prohibited, you must use a heavy-duty ballast system. This involves placing engineered concrete weight plates or cast-iron blocks directly onto the tent's base plates. The exact weight required per leg is determined by structural engineering calculations based on the tent size and local wind loads.
